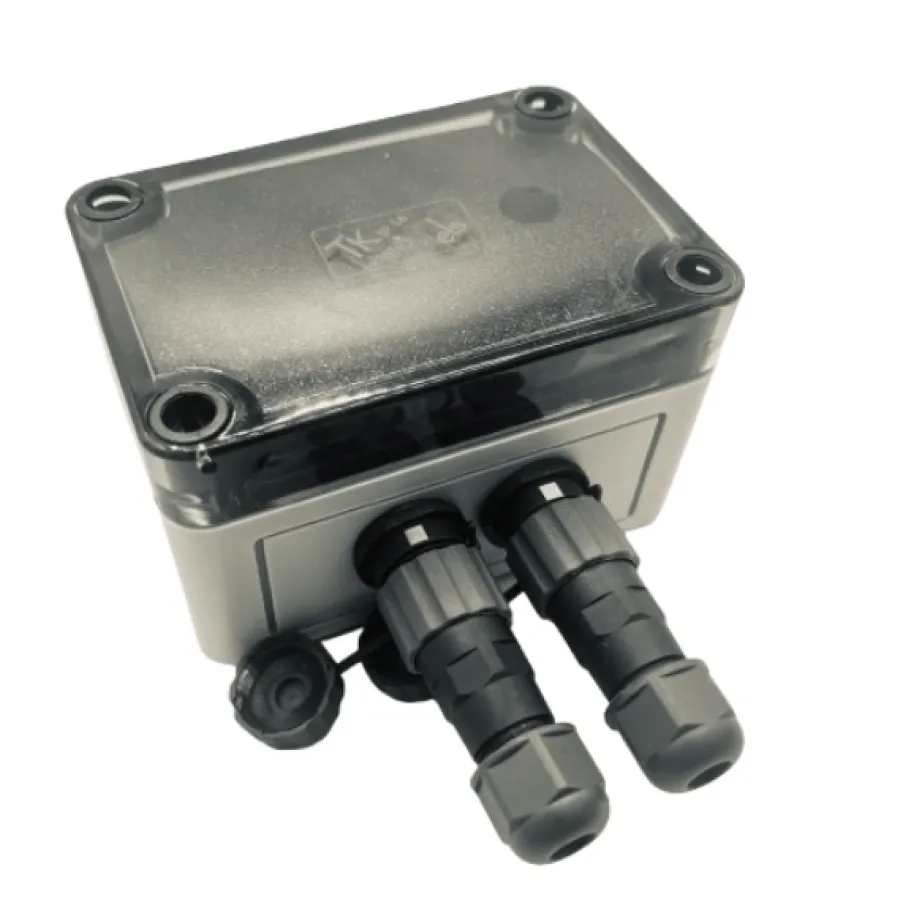

ATEX RTLS Anchor
For vehicle CAS-PDS scenarios and location tracking in underground mines
Features
EU ATEX marking: M1 Ex ia Ma
On-vehicle mounting for CAS and PDS scenarios together with the Android application (please check “CAS-PDS kit for vehicles”).
Supports the tunnel UWB RTLS for underground mines (1D RTLS) and generic 2D-3D RTLS based on TWR and TDoA
UWB characteristics for underground mines:
- Up to 100 meters range with 10-30 cm accuracy
- UWB Link for file transfers and OTA firmware upgrades
Supports BLE RMA RTLS for tracking vehicles using BLE beacons: 10-20 meters accuracy
MQTT as the main data protocol with QoS2 for guaranteed deliveries
Multiple BLE GATT parameters for configuration via mobile app
Master-slave configuration with neighboring anchors for data forwarding over BLE GATT

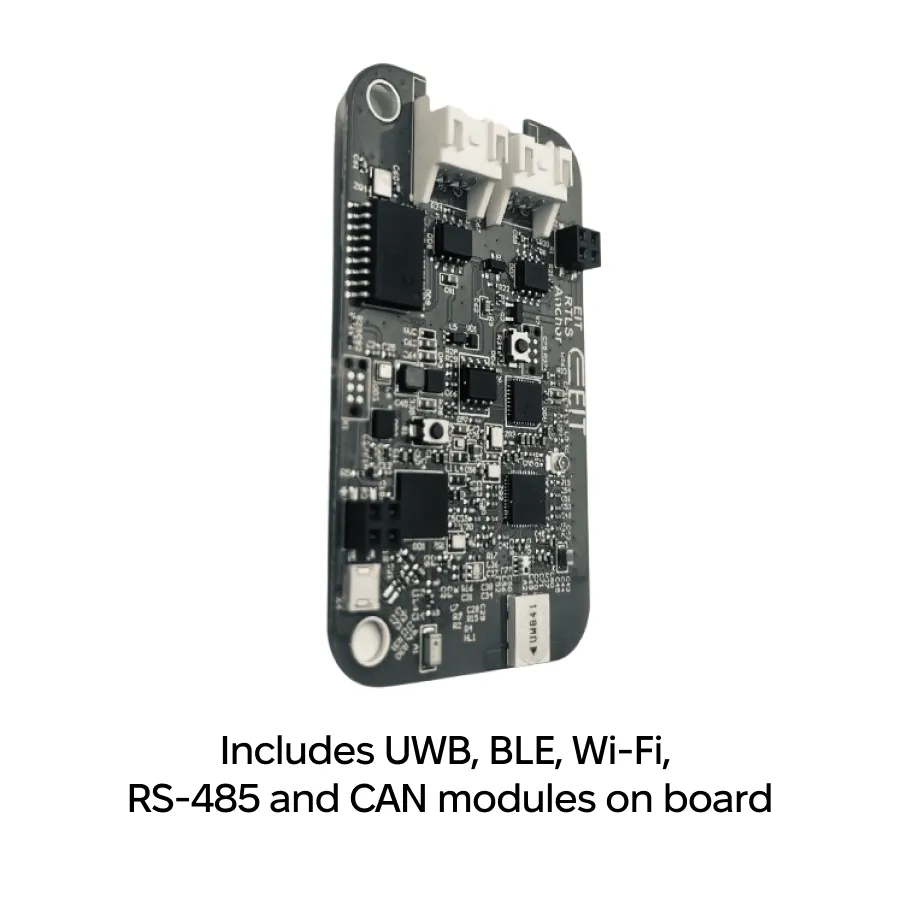

Network connectivity features:
- WLAN
- Wi-Fi Mesh
- RS-485
- CAN

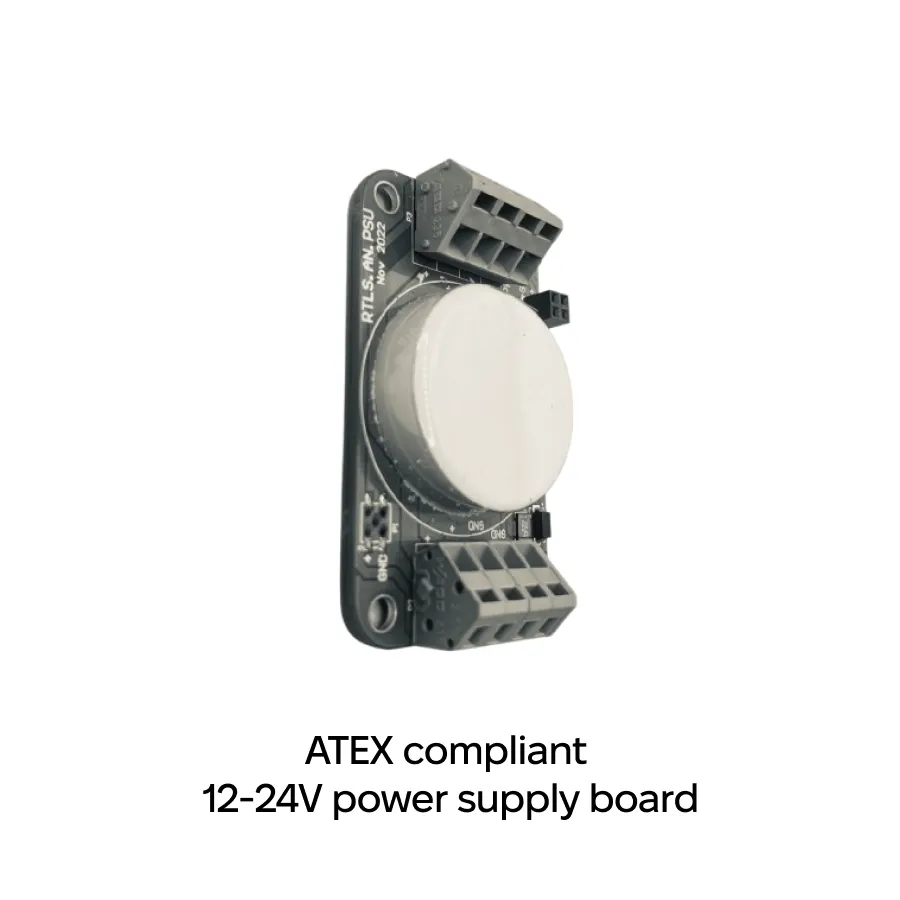

Power supply: 12V twisted pair (24V version is available) or direct 5V USB for testing purposes
