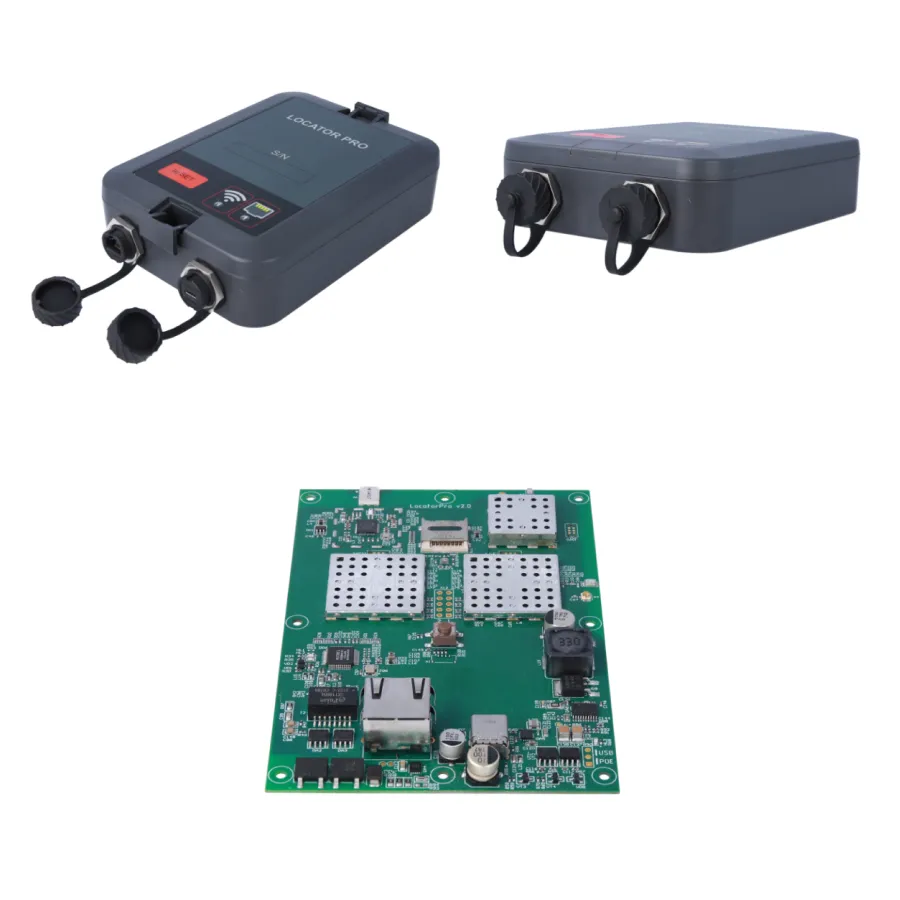

Locator Pro
Advanced anchor and gateway for industrial RTLS networks.
Locator PRO is a feature-rich anchor and gateway device for industrial RTLS networks. It was designed and developed for both indoor and outdoor installations in industrial environments, such as metallurgical factories and warehouses.
The device is compliant with IP67 requirements and includes all typical interfaces and connectors, which are needed for enterprise-grade installations at your locations – for example: 802.3at-af PoE, WLAN and USB interfaces.
Locator PRO is a feature-rich anchor and gateway device for industrial RTLS networks. It was designed and developed for both indoor and outdoor installations in industrial environments, such as metallurgical factories and warehouses.
The device is compliant with IP67 requirements and includes all typical interfaces and connectors, which are needed for enterprise-grade installations at your locations – for example: 802.3at-af PoE, WLAN and USB interfaces.
Features
Main MCU: low-power STM32 Cortex-M7
BLE chipset and antenna: Nordic nRF52832, SMD chip antenna and UFL connector for the external antenna
UWB chipset and antenna: Qorvo/Decawave DW1000, SMD chip antenna or UFL-connected antenna for longer range
Wi-Fi chipset and antenna: Texas Instruments CC3100 – 2.4 GHz only, SMD chip antenna and UFL connector for the external antenna
PoE: ON Semiconductor 802.3at-af module with our custom PoE circuit
Ethernet: Microchip Ethernet RMII PHY module
Barometer: Bosch BMP390
USB: Amphenol USB 3.2 module
Front panel (can be removed): status LED for Ethernet and Wi-Fi connectivity, “Reset” button
Connectors:
- Protected USB Type-C connector
- Protected Ethernet RJ45 connector
- Internal UART connector for modems or sensors
- Internal microSD card slot
- Internal pins for the front panel connector
- UFL connectors for the external BLE and UWB antennas
