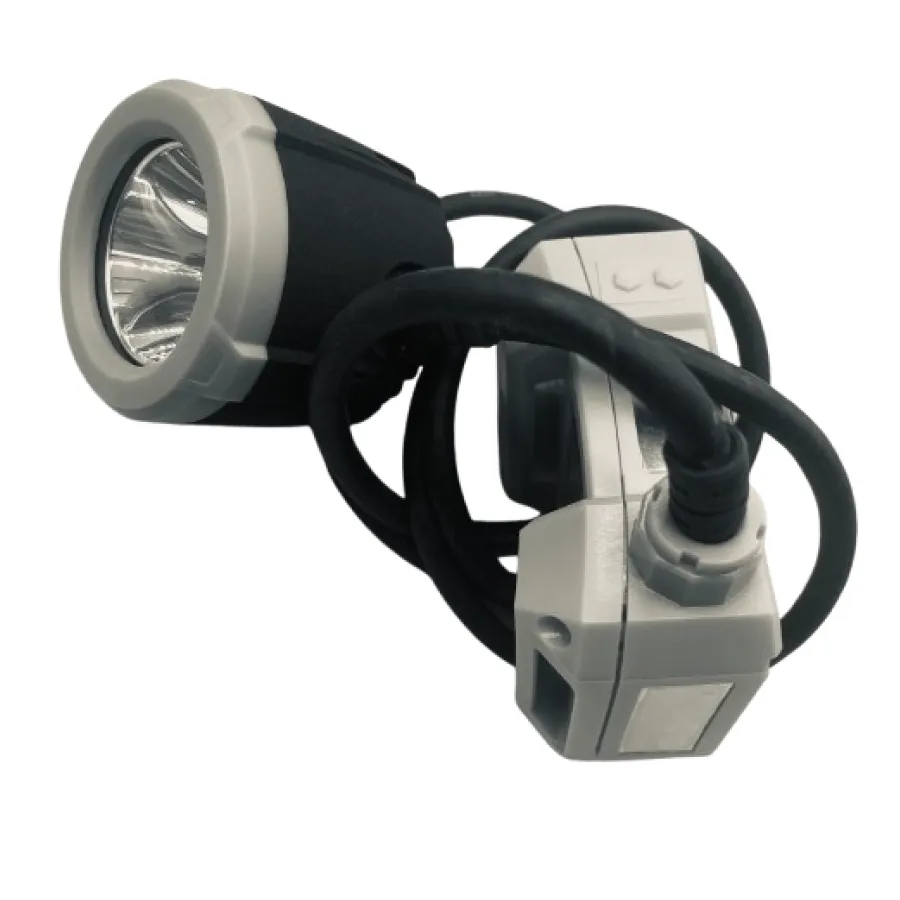

Smart Lamps
Digital cap lamp devices with RTLS, gas sensors, LTE-WLAN connectivity and other IoT features
Light source
LED Power
3
W
Lighting degree
250000
Lux
Life time
100
Hours
Li-ion battery
Rated capability
7,8
Ah
Rated voltage
4,2
V
Charging time
<6
Hours
Life time
1000
circles
Charger
Input voltage
AC100-240
V
Output voltage
DC5.2
V
Output current
1,5
A
Lighting time
Main light
> 10
hours
Auxiliary light
40
hours
Dimension
Headlamp
Dia.76*75
mm
Battery box
112*51*85
mm
Charger
155*64*71
mm
Other parameters
Lighting distance
200
m
Working temperature
-20~40
°C
Highest surface temperature
<45
°C
Weight (with battery)
550
g
IP Class
IP68
Ex-mark
I M1 Ex ia T5 Ga
Features
Embedded RTLS locator with support for BLE RTLS (BLE RMA RTLS)
Data connectivity over Wi-Fi or LTE: NB-IoT or Cat-M1
Offline buffering of RTLS/sensor data for places without Wi-Fi/LTE coverage
MQTT as the main data protocol with QoS2 for guaranteed deliveries
Embedded UWB module for TWR or TDoA based location tracking, supports UWB Link for file transfers and OTA firmware upgrades
Support for two-way alarms and info messaging with colored LED and sound notifications
Multiple BLE GATT parameters for configuration via mobile apps

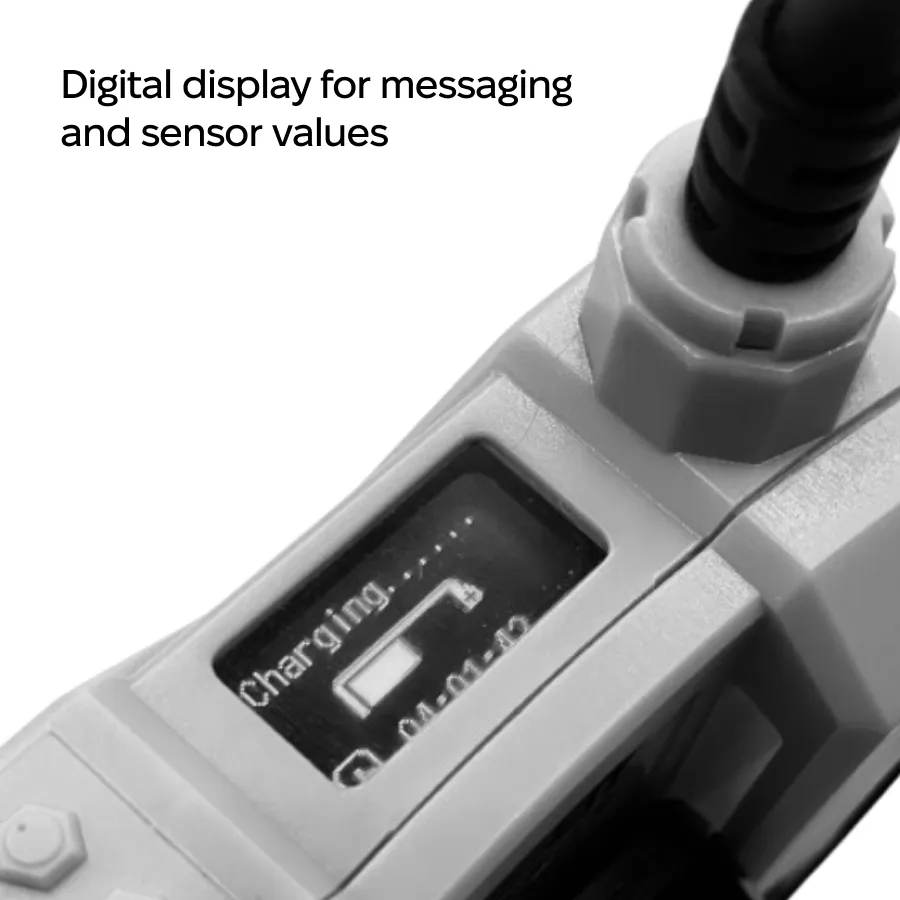

Digital display for messaging and sensor values
Modbus RTU controller for gas sensors and display

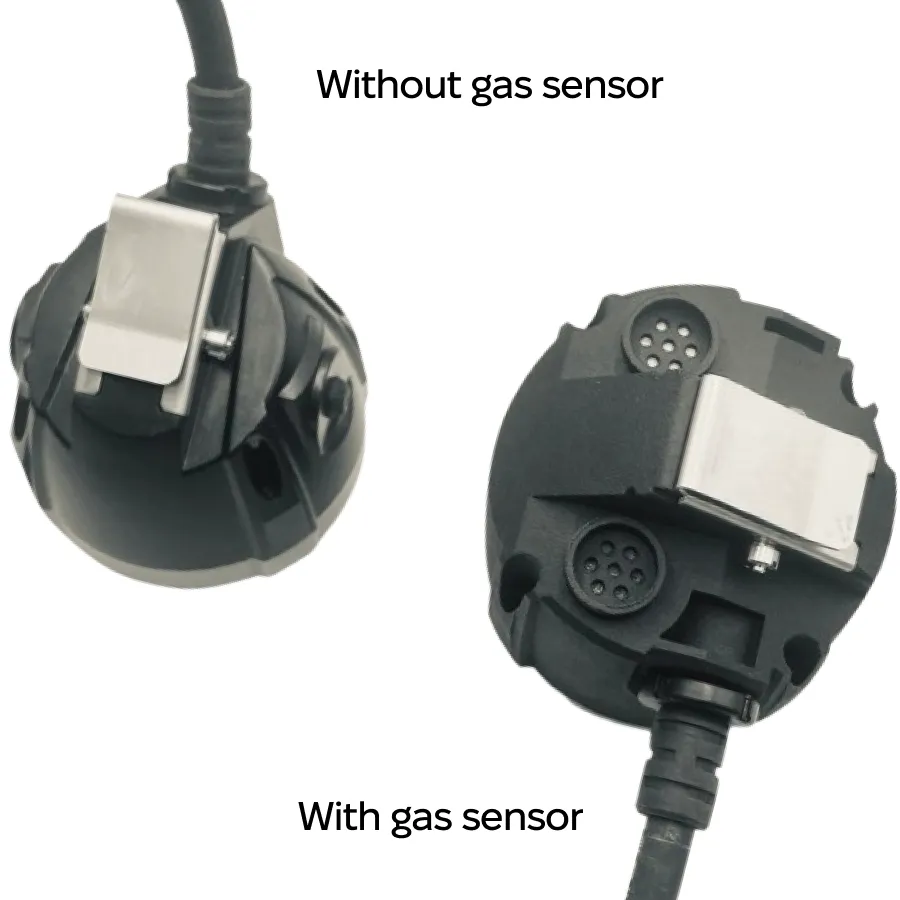

Optional gas sensors: methane and CO
