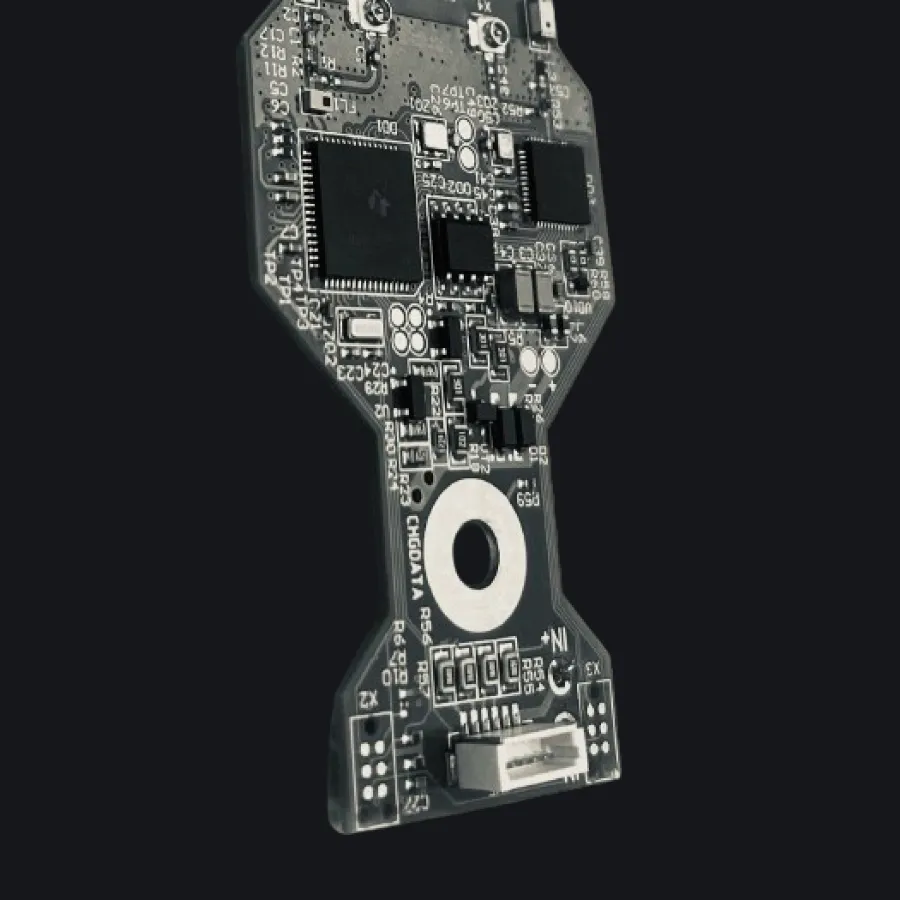

ATEX Locator IPX-RTLS-LB
Features
- Supports the proprietary RMA BLE RTLS for underground mines
- nRF52 BLE chipset for RTLS and configuration features
- CC3100 Wi-Fi chipset with UFL antenna for longer range
- MQTT QoS2 protocol for guaranteed message delivery
- Offline buffering mode to cover the areas without Wi-Fi connectivity
- UART connector to the Modbus controller board and sensors
- 3-axis accelerometer for motion detection
- Supports SOS and text messaging features for Smart Lamps
- Multiple BLE GATT parameters for configuration via mobile apps
- OTA firmware upgrade via BLE
- 3.7-4.2V power supply

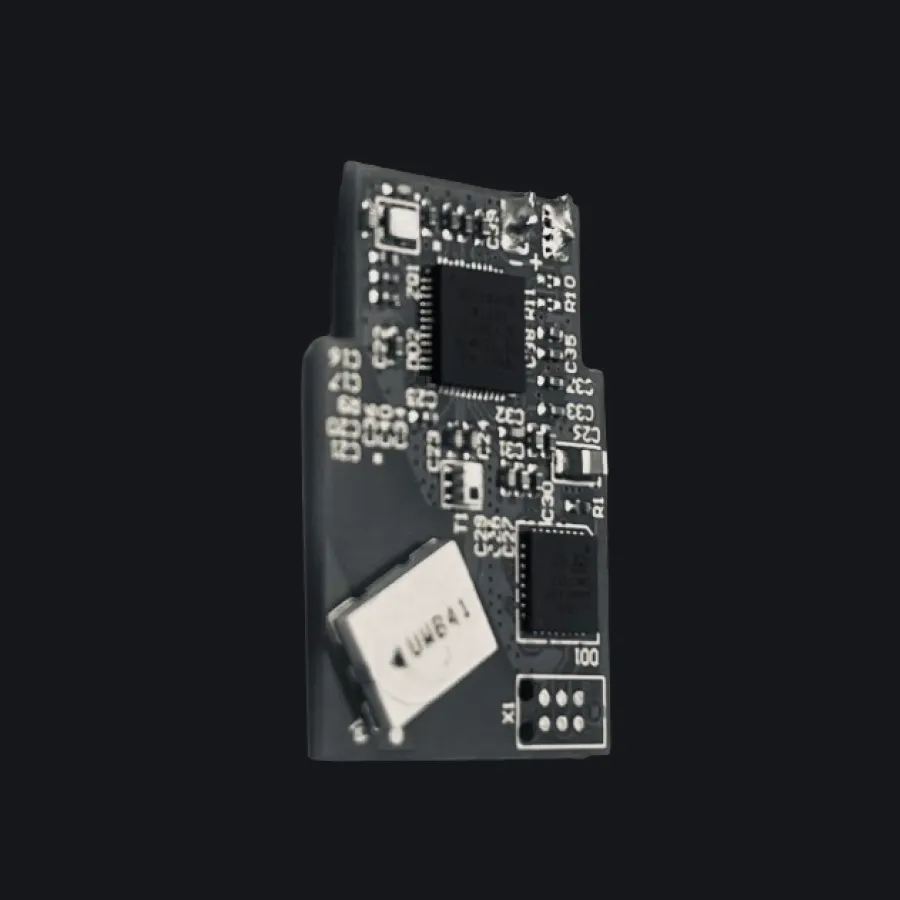

ATEX UWB IPX-RTLS-UWB
Features
- UWB TWR and TDoA for RTLS scenarios
- Custom UWB-based protocol for CAS-PDS scenarios
- Supports “UWB Link” protocol - file transfer and FW upgrades via UWB
- Low-cost and small module, only 2x2 cm in size
- 3.7-4.2V power supply

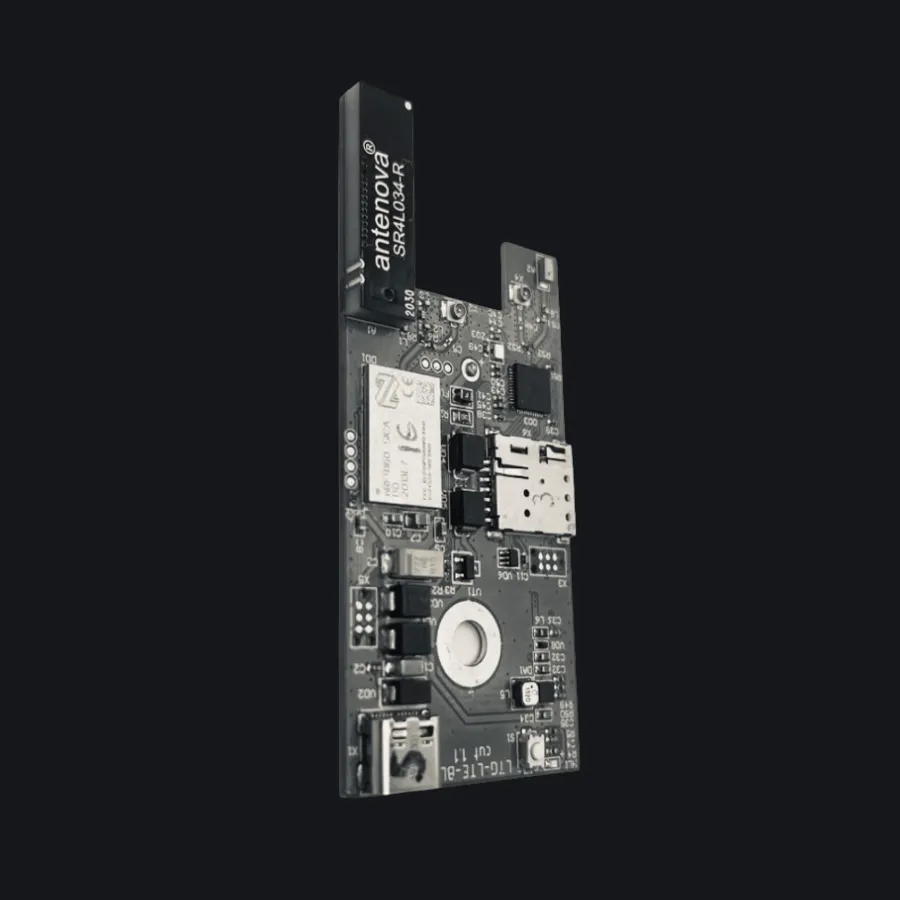

Locator IPX-RTLS-LTE
Features
- Supports the proprietary RMA BLE RTLS for underground mines
- nRF52 BLE chipset for RTLS and configuration features
- nRF91 chipset for LTE connectivity
- MQTT QoS2 protocol for guaranteed message delivery
- Offline buffering mode to cover the areas without LTE connectivity
- Multiple BLE GATT parameters for configuration via mobile apps
- OTA firmware upgrade via BLE
- Power supply: USB 5V or 3.7-4.2V from the lamp accumulators

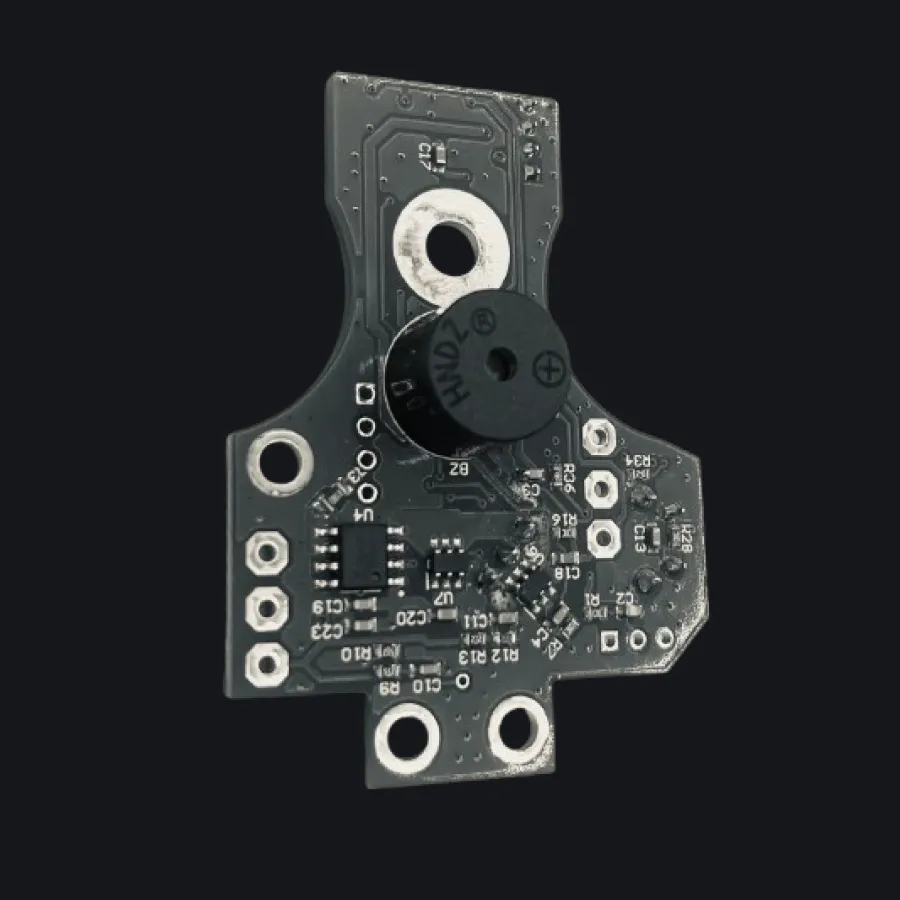

ATEX IPX-RTU-2
Features
- Modbus RTU (Modbus Slave) for communications with the RTLS locators, display and IoT modules
- PWM for LED color and behavior control
- Connectors supporting methane, CO and pressure sensors
- Embedded buzzer for alerts
- 3.7-4.2V power supply
